  • Large capacity refrigerant tank: 50 kg
  • Various language control menu

UPS-FEDEX-EXPRESS DELIVERY

trust-pilot-reviews

Price:
2,500.00€

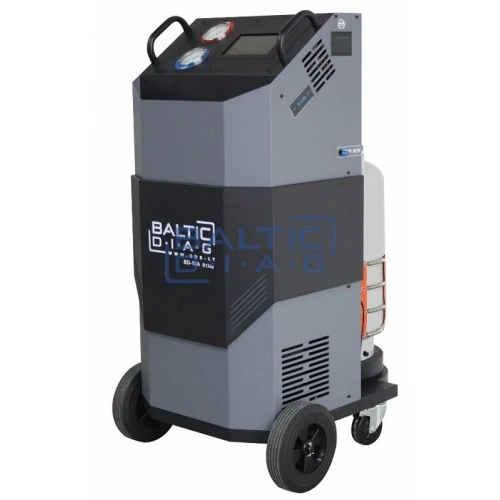

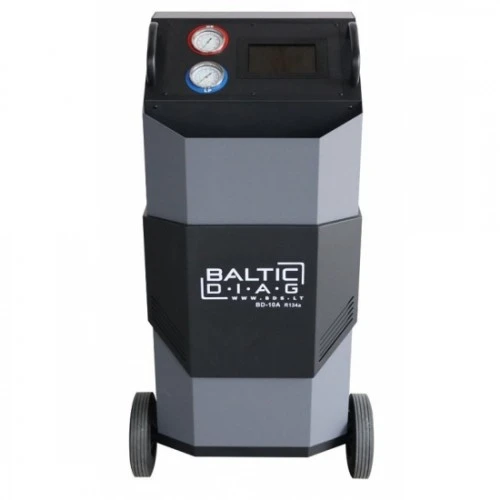

Automatic filling station for heavy transport conditioners BD-10A



The BD-10A air conditioner filling station has a solid and reliable design, designed to meet all the requirements in bus and truck air conditioner filling processes. Using it, you will be able to fill air conditioning systems of not only buses, trucks, but also passenger cars, agricultural, construction, commercial, railway and other vehicles that use R134a refrigerant.



Features:

  • Heating tape
  • Automatic control valves
  • Integrated equipment pipelines
  • Condensing and cooling fan installed

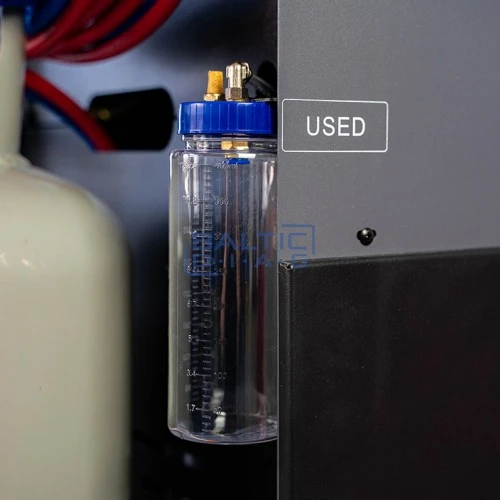

  • The necessary pressure is created to extract the used oil
  • Automatic service reminder.
  • Various language control menu

Key Features:

  • Recovery
  • Vacuuming
  • Oil injection
  • Refrigerant filling
  • Fully automatic mode

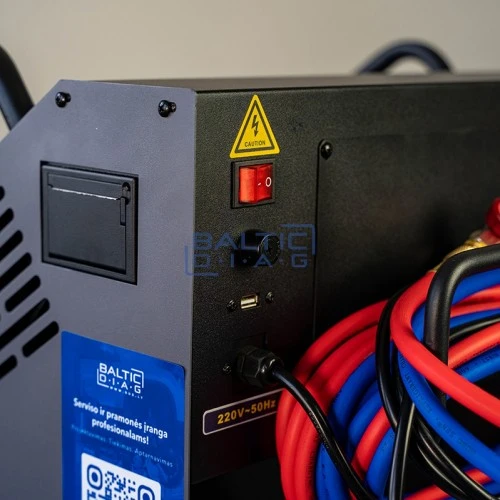

  Supply voltage:   230 V / 50 - 60 Hz / 1 fz
  Extraction efficiency:   > 95%
  Compressor power:   1 HP
  Vacuum pump performance:   220 l/min
  Compatible with refrigerant:   R134a
  Refrigerant scale accuracy:   ± 30 g

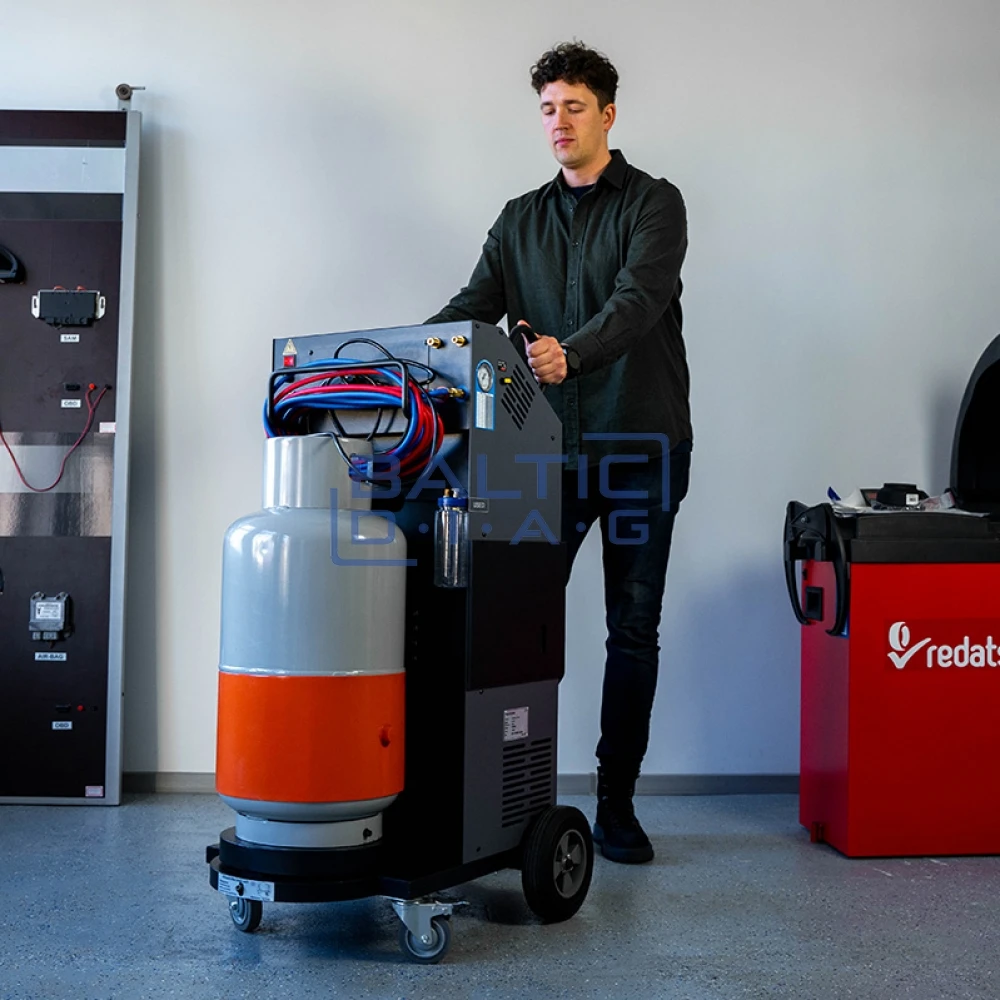

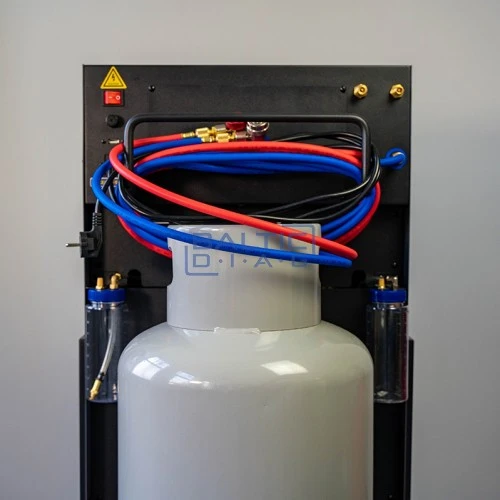

  Refrigerant cylinder capacity:   50 kg
  Oil capacity sizes:   400 ml
  Maximum pressure:   20 bar
  Agent filling speed:   2 kg/min (Max.)

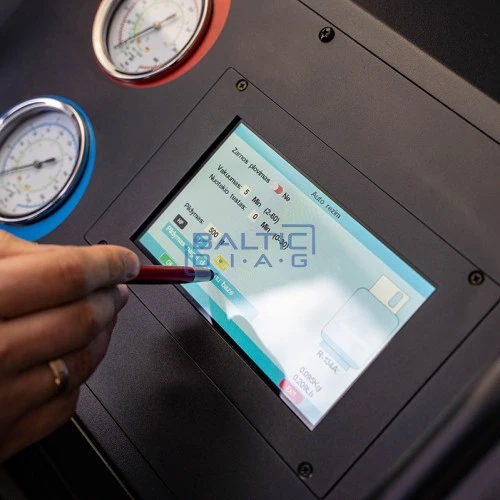

  Screen:   7" inches, touch screen
  Hose length:   5 m
  High pressure manometer:   1 ~ 30 bar
  Low pressure manometer:   1 ~ 16 bar
  Average refrigerant extraction rate:   980 g/min
  Dimensions:   630 x 670 x 1060 mm
  Package dimensions:   750 x 670 x 1160 mm
