13x5x25 cm
0,6 kg
- K-line ISO 9141 (100 mA) multiplexed to 24 different pins of the diagnostic connector
- ISO14230 compliant
- SAE J1850 VPW, PWM compliant (additional adapter required)
- Single wire CAN bus multiplexed to different pins of diagnostic connector
- Dual wire low speed CAN bus multiplexed to different pins of diagnostic connector
- Dual wire high speed CAN bus multiplexed to different pins of diagnostic connector
- CAN bus GMLAN, ISO14229, ISO15765, J1939, ISO22901 compliant

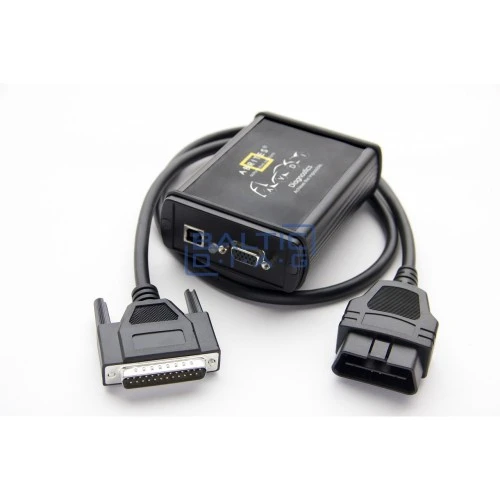

- Analog Input USB interface to the PC Supply voltage 8..30V DC OBDII cable
- Updatable firmware
FULL LIST OF BASIC AVDI FUNCTIONALITIES:
BUDS
BR002 - VCINPL B.U.D.S
CHRYSLER
CR007 - Engine Control Unit Flash Manager
Read/write Data Flash and Program Flash for EDC15C2 and EDC16CP31 ECUs
FIAT
FN007 - Transponder Maker
FN008 - Key Learning
FN011 - BCM Read/Update
FN012 - BCM and Key Manager
FN017 - PIN and Key Manager for FCA vehicles
FORD
FR009 – Airbag
Airbag clear crash data and renew - RCM module with the following processor: XC23xx data flash for FORD/Mazda/JLR and Volvo, as well as TMS470 + EEPROM 25320/25640 for Ford/JLR
JLR
JL002 - Key Learning
JL003 - Cluster Calibration
JL004 - Key Learning (DPLA, FK72, HPLA)
MERCEDES/MAYBACH/SMART
Mercedes Online- CPC modifications by OBDII - VMAX limiter removal/ Exhaust flaps adjustment/ Torque limiter adjustment
SCN coding completely by OBDII by using Mercedes Online (no Xentry online account is required)
MN002 - Cluster Calibration by OBD (K-Line), Assyst Plus ( Mileage calibration – both SAM module and instrument cluster)
MN003 – Airbag (Clear crash data from Bosch/Temic/TRW airbags up to 2010)
MN004 - TV/AUX, Seatbelt, Reverse warning, Gulf states (Enable Video in Motion – either by using Mercedes Offline or Mercedes Online)
MN005 - Key Programming, Immo read/update (Key programming by dump (DAS 2/2a/2b)
MN006 - ECU Read/Update Flash
MN007 - CGW (Central Gateway) Read/Update ConfData (SOFTOUCH activation - switching from semi-automatic to automatic transmission), Gearbox adaptation
MN008 - SMART Key Learning, Emergency start – models 451, 454 ( Key programming – models 450, 451, 452, 454 ), Cruise control activation
MN009 - Cluster Calibration for SMART after 2007
MN010 - Cluster Calibration for S-Class W221/CL W216 and Sprinter, Vito, Viano (after 2006)
MN011 - CAN Dash Cluster Calibration - W211, W219, W164, W251, W203...
MN012 - Cluster Calibration - Mercedes, Smart
MN013 – Airbag – clear crash data
MN014 - Cluster Calibration in Dash in SMART 2007+ and in SAM module (451)
MN015 - Cluster Calibration - Mercedes
MN016 - Cluster Calibration for W204/W212/W207/W197/X204/w218
MN017 - Cluster Calibration for W220/W215; Read/Update ConfData of W220/W215/W169/W245/W221/W216 (Reflashing and renewal of SAM module and SAM/ECM synchronisation), Cluster calibration and adaptation for vehicles up to 2014
MN018 - Key Learning (DAS2, DAS2A, DAS2B, DAS3), Virgin ECU, SBC Repair (SBC counter reset), Repair Start Error
MN019 - Electronic Transmission Control (722.9) and ISM renew ( 7-G Tronic Databse for TCU reflashing)
MN020 - Instrument Cluster Data Manager ( Mileage calibration )
MN021 – TV (TV In Motion), ECU, Airbag Manager
MN028 - Instrument Cluster Data Manager, TV (TV In Motion), ECU, Airbag Manager
MITSUBISHI
MI003 - ECU Read/Update Flash - Reading of EDC15 engine control units (ECU)
MI005 - Electronic Control Unit reprogramming ( EDC15 engine control units (ECU) reprogramming)
OPEL
ON007 - Tech2Win Driver
RENAULT
RR002 - Key learning
RR003 - ClioIII, Modus, MasterIII, Logan, Traffic
RR005 - Key learning
RR006 - Megane III key learning
RR007 - Updated SW key learning
RR008 - Clio IV key learning
RR010 - Clio IV key learning
RR012 - Twingo III key learning
RR015 - Smart 453 key learning
TOYOTA
TN004 - Key Programming
TN005 - Advanced diagnostic functionality. Key programming (Immo Box – mechanical keys – requires ZN039-2)
TN006 - Advanced key programming by diagnostics (Smart Key programming – requires ZN039-2)
TN007 - Advanced diagnostic functionality and key programming (Smart Keys programming for models up to 2016/2017)
VAG
AN002 - Cluster CAN - Calibration
AN003 - Cluster PIN-CAN - Calibration
AN004 - Immo panel – Read PIN
AN005 - Immo panel EDC16 - Read PIN&CS
AN006 - Cluster K-Line - Calibration
AN007 - ECU ConfData – Read ECU EEPROM
AN008 - Flash Counters
AN010 - Airbag ConfData – Airbag reset
AN011 - TV Configuration – TV in motion
AN012 - EDC16 calibration – mileage in ECU
AN014 - EDC17 PIN – Read Immo Data PIN&CS from ECU
AN015 - Flash Memory ECU – by OBD
AN018 - Dealer key learning Q7- spare key (2006 - 2008)
AN019 - Prepare Dealer Key Q7 – spare key (2006 - 2008)
AN021 - ME7 ConfData – read and write ECU EEPROM all by OBD
AN023 - VW Crafter – Read/Write ECU ConfData, Key learning, ECU and Immobilizer Diagnotics, Remote Control Diagnostic, ECU ConfData in Direct Mode, ECU Adaptation (Autodetect/Manually enter ECU PIN/CS)
AN024 - Key learning for EDC16 models – If PIN and CS are known
AN025 - EDC16/MED9/Simos PIN/CS – Read Immo Data
AN026 - Dealer key learning
AN027 - Q7 2008+
AN028 - Cluster CAN UDS
AN029 - IMMO Data Immobiliser/ECU
AN030 - Key Adaptation (All VAG Models)
AN031 - Dealer Key Preparation – Models up to 2012
AN032 - Security code by CAN
AN033 - ECU ConfData (EDC15, ME7.x.x) – Read ECU EEPROM by OBD
AN034 - Cluster - PIN/Calibration – K-Line – Mileage for all Models up to MY 2006
AN036 - Airbag (K-Line/CAN) – Airbag reset for models up to MY 2008
Other functionalities already included in AVDI Base for VAG:
- Diagnostic channel adaptations
- Key programming by channel if the PIN is known (done in diagnostics in Instrument Cluster)
- Guided functions for ECU, Instrument cluster, Navigation, Steering wheel, Electronic parking brake, Telephone, Comfort module and Body Control Module (enable/disable)
- Enable video in motion for MMI 2G and 3G
- Steering lock adaptation (done in diagnostics on a separate channel)
- 7-digit to 4-digit PIN conversion
- DPF remove by DUMP – EDC16 (checksum needed), EDC17
- Key Programming, Mileage Calibration and module replacement for all VAG Immo III and III+ vehicles
