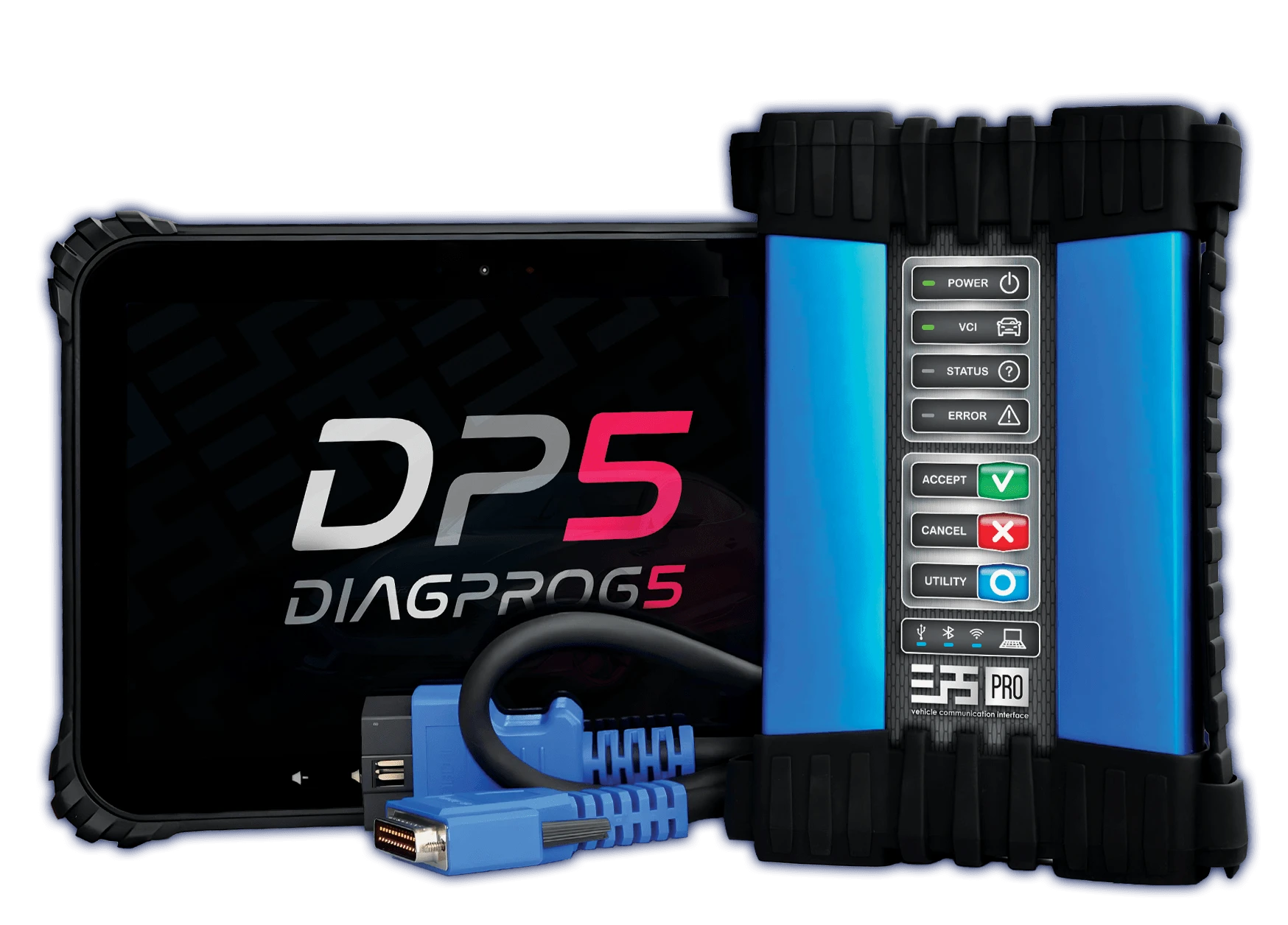

ELP5 PRO – VCI is a state-of-the-art interface made to link a host PC/Android based device with a vehicle’s diagnostic connector.

The ELP5 PRO – VCI enables fast, reliable diagnostics, flashing, and complex programming.

It offers two modes: Pass-Thru for vehicle programming or standalone operation with DiagProg® software. With three CAN channels, UART, J1850, and flexible configuration, it supports a wide range of communication protocols for maximum compatibility.

The ELP5 PRO – VCI is equipped with top-tier hardware, making it a robust, efficient, and user-friendly tool for automotive professionals.

Mode 1 – Pass-Thru interface device supporting standards:

• J2534-1 Pass-Thru Vehicle Programming API
• J2534-2 Optional Pass-Thru Features API (partial)

Mode 2 – Stand-alone device controlled by DiagProg® software running on an Android-based host

• ISO 11898 – CAN-FD 5Mbps
• ISO 11898-3 – Fault Tolerant CAN
• ISO 15765 – Diagnostics on CAN
• ISO 13400 – DoIP
• ISO 14230 – KWP2000
• ISO 14229 – UDS

• ISO 9141 – K & L Lines
• SAE J2411 – Single Wire CAN
• SAE J2818 – KWP1281
• SAE J2819 – TP2.0
• SAE J2284 – High-Speed CAN
• SAE J2740 – GM UART

• SAE J1850 – VPW/PWM
• SAE J2610 – Chrysler SCI
• SAE J2809 – Honda DIAG-H
• Chrysler CCD

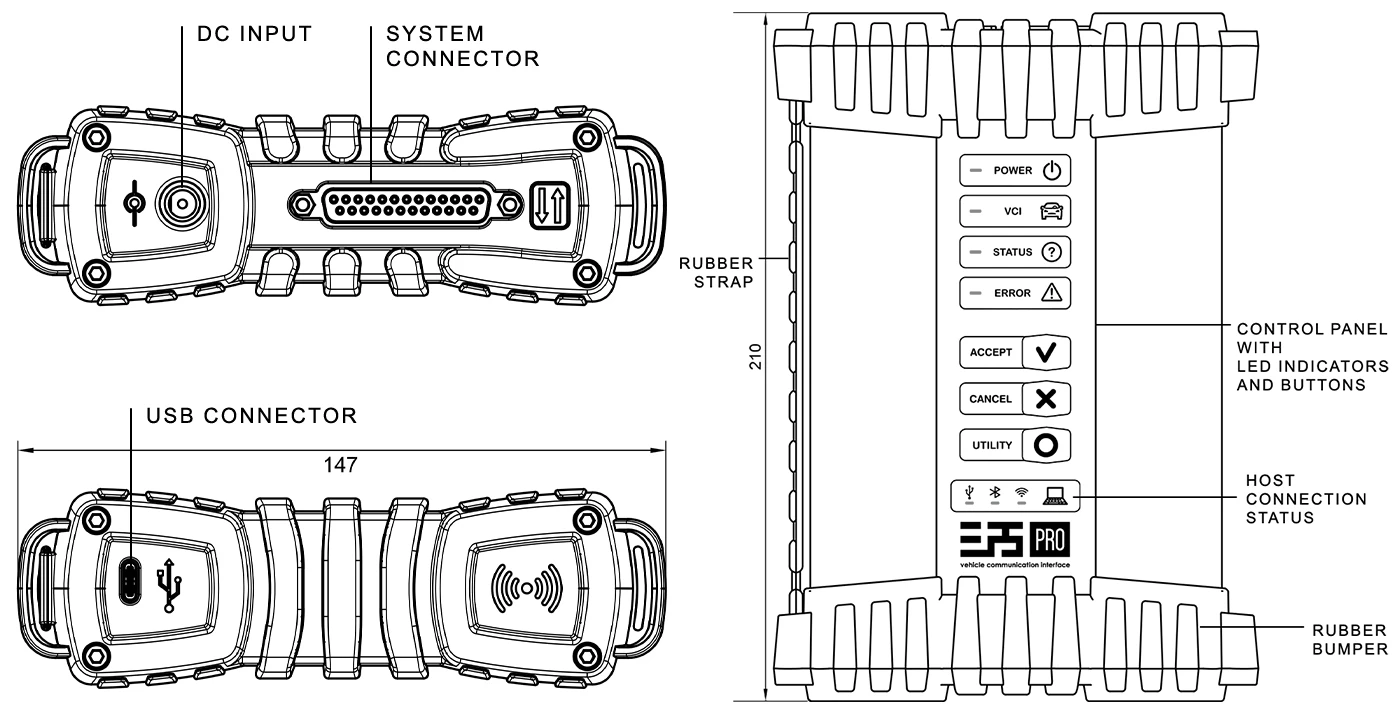

Hardware Interface

• CAN – 3 independent channels
• UART – 3 independent serial communication channels
• J1850 – 1 channel
• Slot for Expansion Board for future/custom standards
• Nearly unlimited configuration options support

Custom System Interface

• 9x Programmable Multifunction Input / Output / Bidirectional pins
• Pull-ups, pull-downs, „open-drain”, Schmitt trigger options
• SPI, UART, I2C, 1-Wire, JTAG, BDM, High Speed Clock

HOST Interface

• 802.11 a/b/g/n/ac WiFi 2.4/5GHz
• Bluetooth 4.2 EDR
• USB 2.0 Hi-Speed
  (USB-C connector)
• WiFi Direct

Extensive Vehicle Coverage

Supports more than 7000 vehicle modules, ensuring compatibility with a vast array of car makes and models.

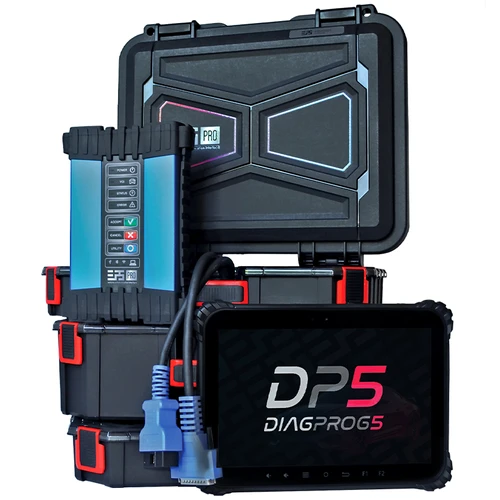

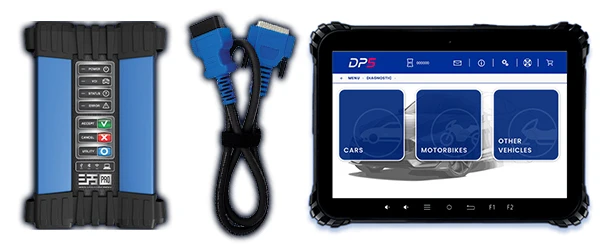

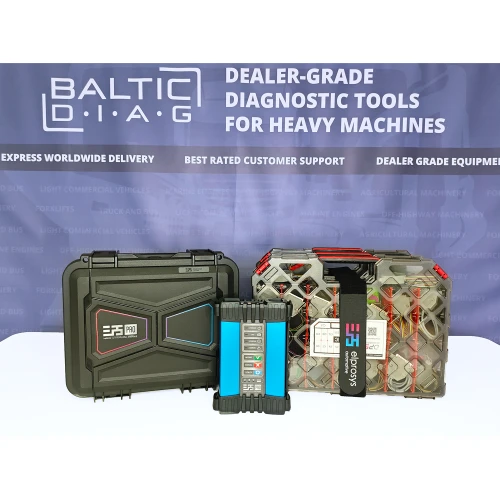

ELP5 PRO – VCI included

Allows easy, fast and reliable diagnostics, flashing and other complex programming operations.

OBDII Programming

Vehicles are programmed via the diagnostic plug (OBDII), allowing straightforward and efficient connectivity.

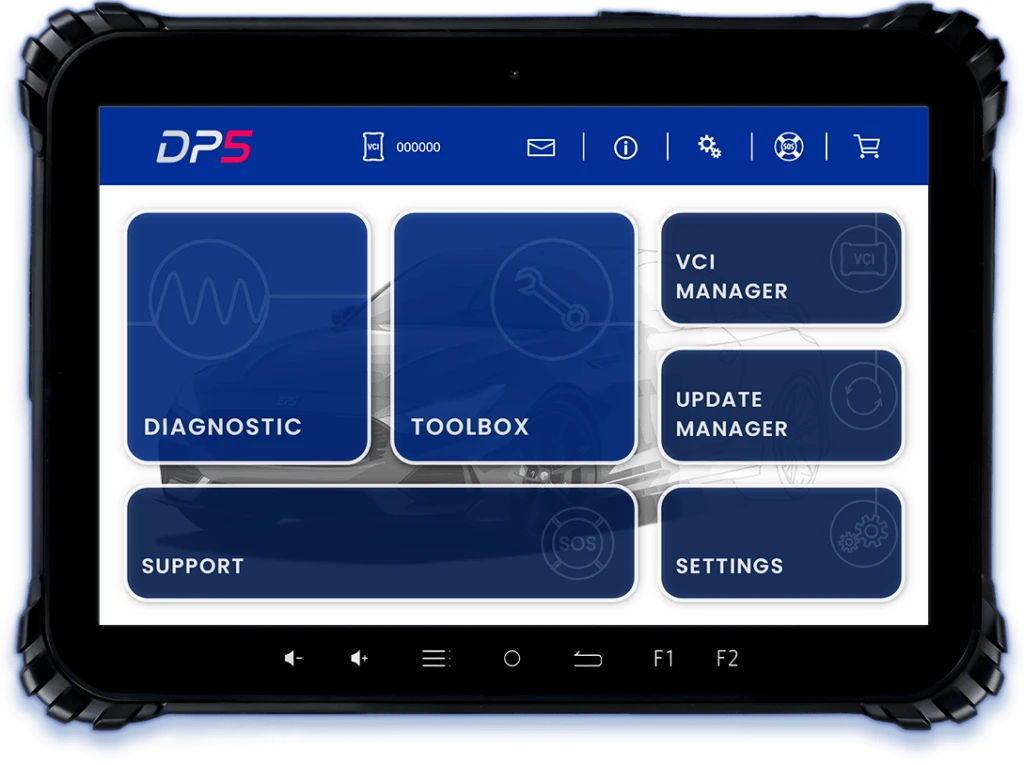

Powerful Software

The enhanced processing speed and user interface lead to quicker diagnostics and programming increasing overall productivity. Support in 8 languages.

Convenient Software Updates

Software updates are possible via WiFi or USB 2.0, allowing easy and quick updates to the latest features and vehicle modules.

ECU File Database

Access Provides online access to an extensive ECU file database, ensuring users have the latest and most accurate information.

Dedicated Support Platform

DiagProg5 offers a dedicated support platform for easy and fast technical assistance, ensuring users get help when they need it.

Professional Guarantee and Service

DiagProg5 comes with a 24-months guarantee and professional service during and after the warranty period, providing peace of mind to users.

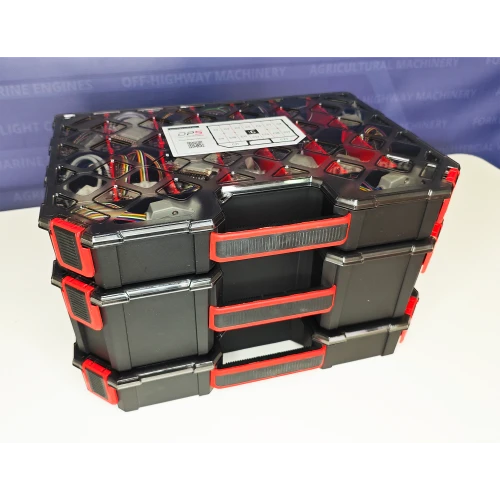

Cables: C1, C2, C3, C5, C6, C7, C8, C9, C10, C11, C13, C14, C18, C19, C21, C23

Cables: D18, D19, D20, D21, D23, D24, D25, D26, D27, D28, D29, D30, D31

Cables: D2, D4, D6, D7, D8, D9, D10, D11,D12, D14, D15, D17;
Parallel Adapter, Key Programmer
