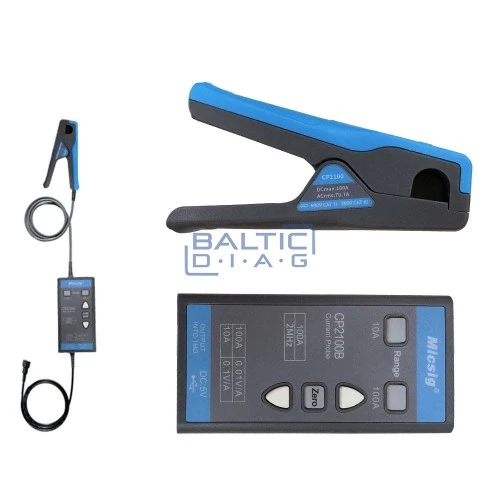

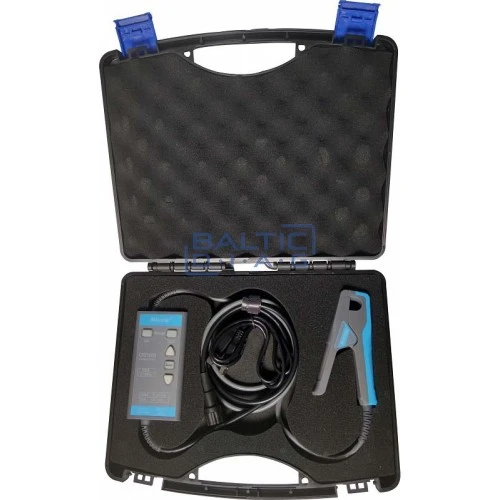

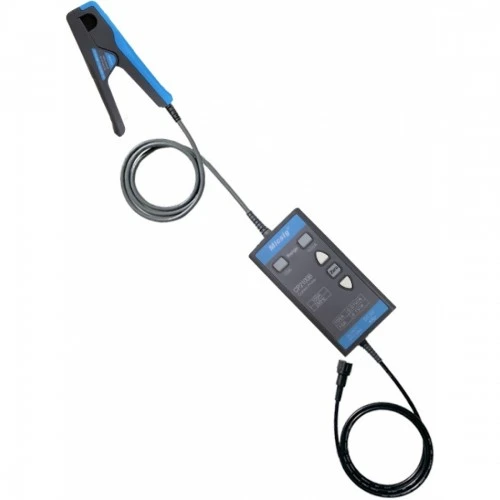

CP2100 | Micsig | Oscilloscope ultra-low current measuring clamp AC DC

CP2100 | Micsig | Oscilloscope ultra-low current measuring clamp AC DC
CP2100 | Micsig | Oscilloscope ultra-low current measuring clamp AC DC
CP2100 | Micsig | Oscilloscope ultra-low current measuring clamp AC DC
CP2100 | Micsig | Oscilloscope ultra-low current measuring clamp AC DC
CP2100 | Micsig | Oscilloscope ultra-low current measuring clamp AC DC
CP2100 | Micsig | Oscilloscope ultra-low current measuring clamp AC DC
CP2100 | Micsig | Oscilloscope ultra-low current measuring clamp AC DC
  • Current measuring clamps are designed for measuring extremely small currents. It is possible to measure direct and alternating current.

UPS-FEDEX-EXPRESS DELIVERY

trust-pilot-reviews

Price:
313.22€
  • : In Stock! Estimated Delivery Time: 2-4 Days
  • Brand: Micsig
  • Model: CP2100



CP2100



Band width  DC ~ 800 KHz
Rise time  ≤ 437.5 ns
Ranges  10 A / 100 A
Output sensitivity  0.1 V / A (10 A)
0.01 V / A (100 A)
DC accuracy (typical)  3% ±50 mA (10 A)
4% ±50 mA (100 A, 500 mA ~ 40 Apk)
15% (100 A, 40Apk ~ 100 Apk)
Signal delay  < 150 ns (10 A)
< 200 ns (100 A)
Current measurement ranges  50 mA ~ 10 Apk (10A)
1 A ~ 100 Apk (100A)
Max. measuring current  100 Apk, 70.7 Arms (DC + ACpk)
200 Apk-pk, 70.7 Arms (AC)
Max. working voltage  CAT III 300 V, CAT II 600V
Max. float voltage  CAT III 300 V, CAT II 600V
Max. conductor diameter  13 mm
Overload alarm  Buzzer beeps, Button flashes
Power supply  DC 5 V



Features:

  • Small and exquisite design
  • Standard BNC connector, can be used with oscilloscopes and multimeters
  • Automatic and manual zero value function
  • The device is powered via a USB connection, no additional adapters are required
  • A wide range of uses of the device
