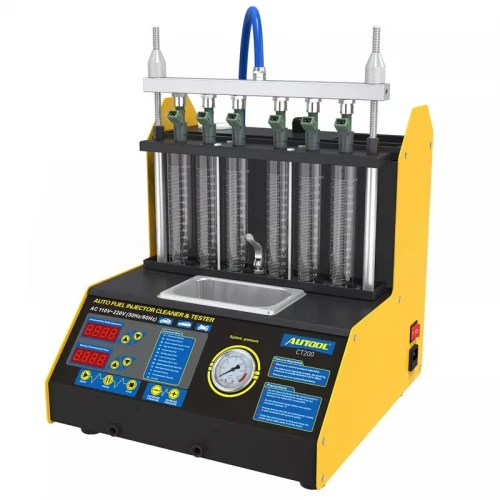

CT200 | Autool | Petrol Injectors Testing And Washing Device

Features

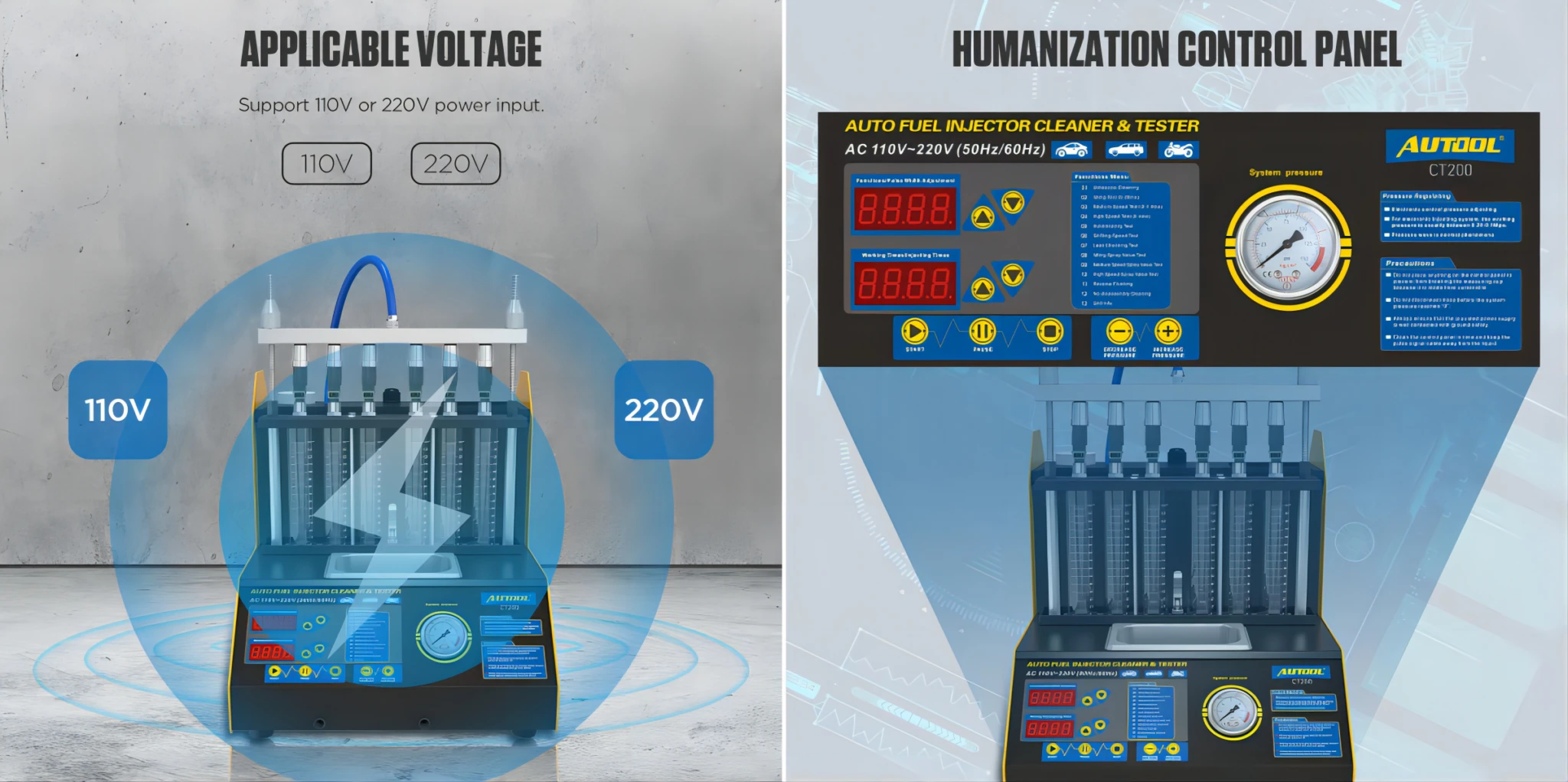

• Digital Display: With the help of microcomputer control and digital display, the equipment makes possible automatic cleaning, testing injectors, and real-time monitoring of the dynamic values.

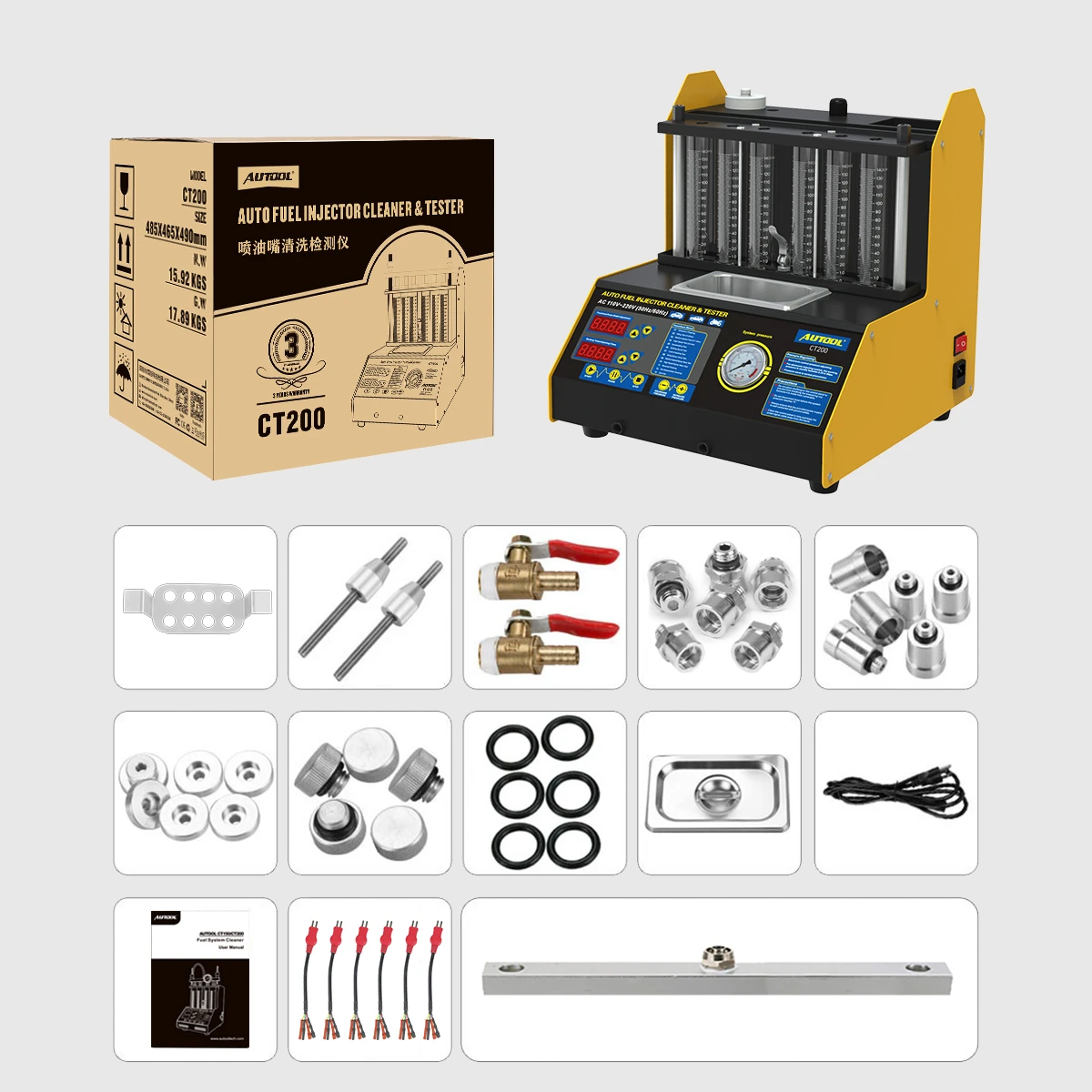

• Adopting Humanization Design: Automatic fuel draining through preset programs for some test items. Test liquid/detergent can also be drained by pushing a button on the control panel after the test. can make the system pressure fast restored to the default, The unit is equipped with various adaptors and couplers that facilitate cleaning the injectors on the vehicle.
• Automatic Cleaning and Testing: Fuel pressure control through microcomputer offers stable pressure control and a large adjustable range, which is suitable for all EGI vehicles and can help to achieve automatic cleaning and testing of injectors.

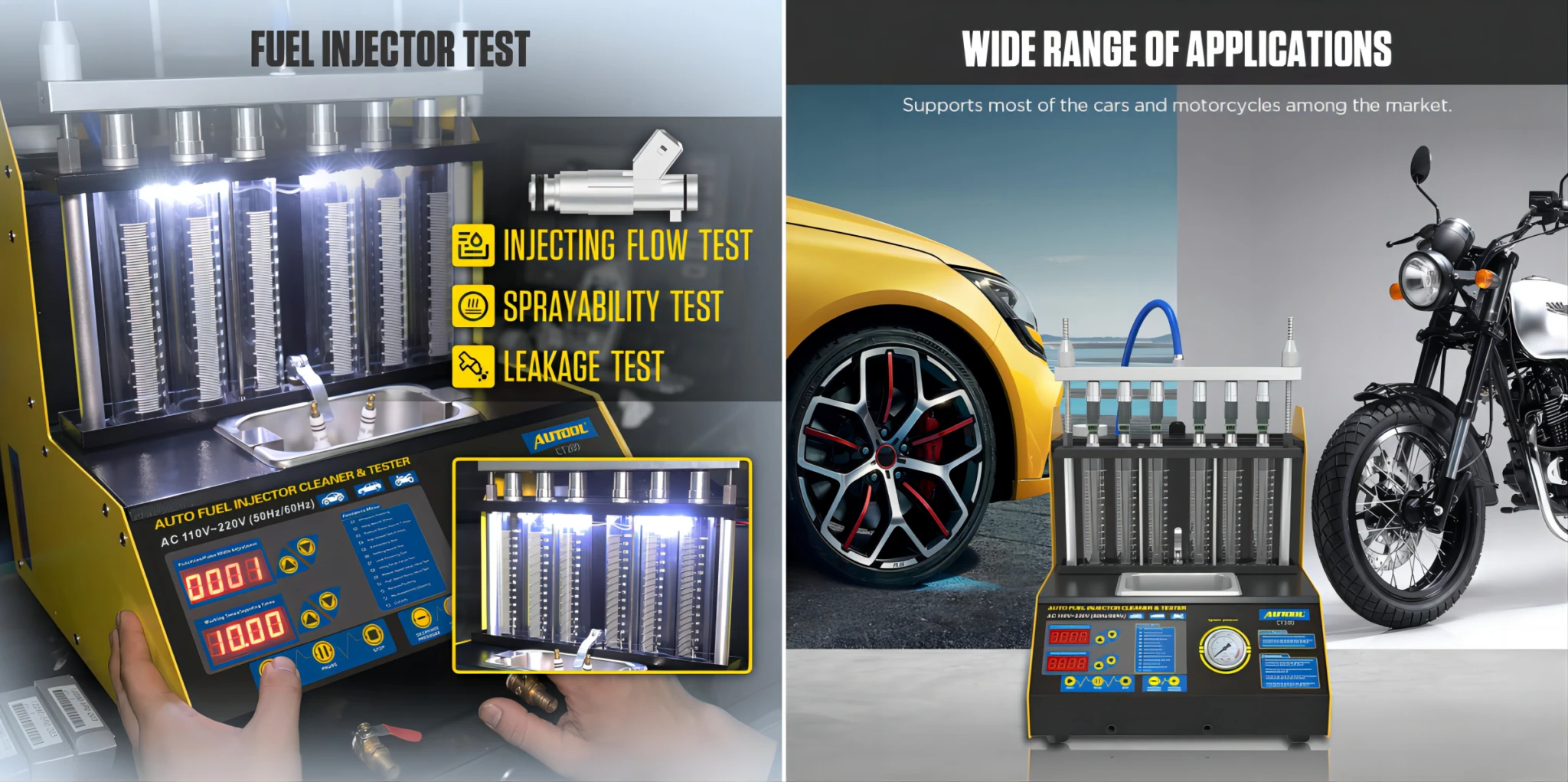

• Reverse Flush: Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.

Tips

• For ultrasonic cleaning fluid, please use professional engine carbon cleaning fluid.
• Please use professional injector test fluid, do not use corrosive cleaning fluid, cleaning fluid will damage the equipment, if the equipment is damaged because you use the cleaning fluid when testing the injector, you need to bear the repair costs.
• When using the ultrasonic cleaning function, please add the transmitter carbon cleaning fluid before running the equipment, please do not add the cleaning fluid directly to open the equipment to run, as it will lead to ultrasonic motherboard damage.
• How to choose cleaning fluid? In order to achieve the best cleaning effect, it is recommended to use a professional syringe ultrasonic cleaning fluid to clean the injector. Or you can use medical alcohol with an alcohol content of more than 75% instead of cleaning fluid, but the cleaning effect may not be good enough.
• How to choose test fluid? In order to achieve the best test effect, it is recommended to use professional automotive injector test fluids. If it is not available locally, as an alternative, it’s recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the test fluid.

How To Use AUTOOL CT200

1. Clean injectors outside with gasoline or cleaning liquid before open the machine
2. Putting injectors in the ultrasonic bathtub after the outside of the injector is free of dirt.
3. Turn on the ultrasonic system， pulsed allowing the ultrasonic energy to dislodge any particles that even build up inside the injectors.
4. Fixed injectors on the main machine.
5. Testing injectors for resistance, shorts, and current draw.
6. Performing leak test, spray pattern, and flow rate testing on the flow bench.
7. The injectors are now returned to the flow bench for retesting of all functions.
