CT400 Petrol Injectors Testing And Washing Device
AUTOOL CT400 adopts the latest unique GDI injector driving technology, which can drive 12V, 70V, and 120V high-voltage injectors.
When you can’t judge the voltage type of the injector, you don’t need to worry about burning the injector nozzle due to high voltage, CT400 will intelligently judge the driving voltage needed for the GDI injector. If the voltage is selected incorrectly, there will be no fuel injection or alarm. It is your first choice of equipment for automotive service and repair.
Injector performance plays a vital role in every engine. Fuel in the process of combustion will cause carbon deposits in the cylinder, resulting in the injector can not work properly. Accelerated cylinder bores and piston rings, result in unstable idling, increased fuel consumption, weak acceleration, starting difficulties and other problems, and finally lead to engine damage, so we need a device that can be both tested and cleaned to solve the problem of fuel injectors.
Features
- For GDI Injector Cleaning and Testing: The AUTOOL CT400 utilizes the latest GDI injector drive technology to clean and test not only regular injectors, but also GDI injectors such as those used in Mercedes-Benz, BMW, Audi, Porsche, Ford, and other direct-injection engines.6-cylinder design for simultaneous testing of multiple injectors.
- Advanced ultrasonic cleaning technology: stable oil pressure, wide adjustable range. Strong cleaning capacity, large capacity of cleaning cylinder, can clean several injectors at the same time.
- Multi-voltage selection: CT400 6 Cylinder Injector Nozzle Cleaning Tester is designed with multiple voltage output types (12V, 70V, 120V) to choose from in order to adapt to different types of injectors. Intelligent judgment of the driving voltage required by the GDI injector, even if you choose the wrong one, it won’t cause any damage to the injector, it will not inject oil or send out an alarm.
- Support Car Model: Support for Audi, Benz, BMW, Brilliance, Chevrolet, Chevy, Chrysler, Citroen, Dacia, Dadi, Daewoo, Daihatsu, Demo, Fiat, d, GM, Holden, Honda, Hyundai, Isuzu, Jaguar, Kia, Lancia, Land Rover, Mahindra, Maruti, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Romeo, Rover, Saab, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Toyota, Volvo, VW, Yamaha.

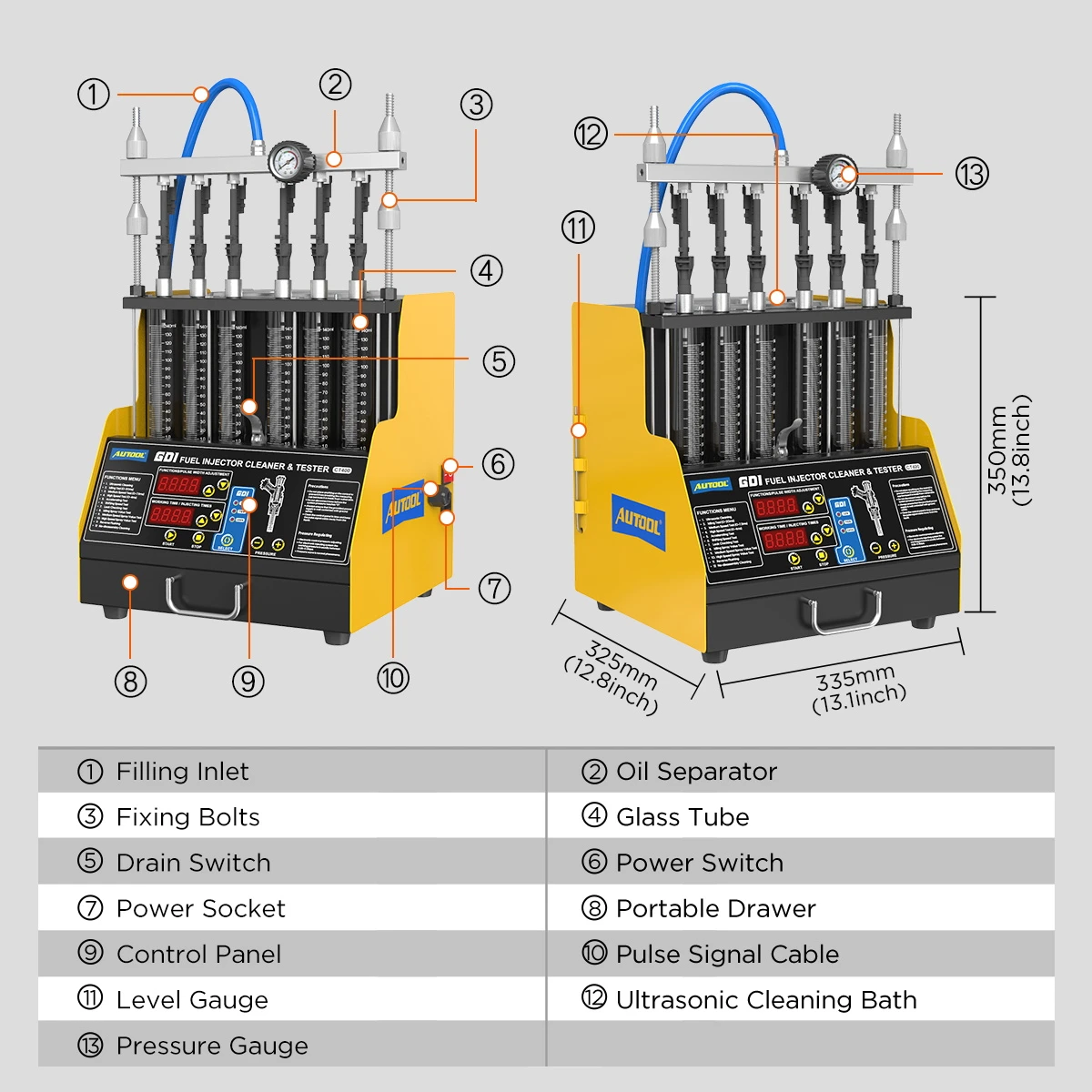

- Intelligent Design: Equipped with high-definition digital control panel display, easy to operate and learn. With the help of bright LED backlight, you can clearly observe the various working conditions of the injector. It is also equipped with a test fluid drain valve, which allows clear observation of the test fluid content and can also be recycled and reused.
Functions
- Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.
- Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
- Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.
- High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.
- Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.
- Shift speed test: Simulate the shifting state of the car and test the working performance of the fuel injector.
- Leakage test: Test the sealing condition of the fuel injector.
- Idle speed sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
- Medium-speed sprayability test: Simulate the engine’s medium-speed state and test the spraying performance of the fuel injector.
- High-speed sprayability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
- Reverse flush: Reverse flush is a way to clean the injectors with the test liquid flowing from the outlet to the inlet of the injector. Reverse flush may remove the dirt inside the injector or the injector Strainer (Only for the top fuel supply injector).
- No-disassembly cleaning: Direct cleaning without disassembling the injectors, this function is an additional function, that requires special adapters.
How To Choose Test Fluid And Cleaning Fluid?
- Test Fluid: The test fluid is used to test and judge whether the performance of the fuel injector is in good condition. It is a colorless and transparent liquid with no irritating odor, non-corrosive, and not easy to emit. Its function is to simulate various working states of the fuel injector as a medium. In order to achieve the best test effect, it is recommended to use professional automotive injector test fluids. If it is not available locally, as an alternative, it’s recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the test fluid.
- Cleaning Fluid: Cleaning fluid is used to clean deposits (such as carbon deposits) on fuel injectors, and it is usually highly corrosive and flammable. In order to achieve the best test effect, it is recommended to use a professional injector ultrasonic cleaning fluid. If it is not available locally, it’s recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the cleaning fluid, but note that the effect may not be good enough.
