ELA320 EV | Launch | Digital Power Supply
- Independent protection mechanism
- Wireless control
- In conjunction with X-431 Euro Tab III
- : En stock
- Marca: LAUNCH
- Model: ELA320

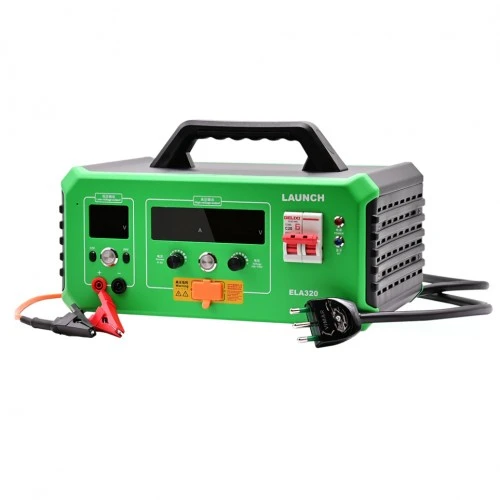

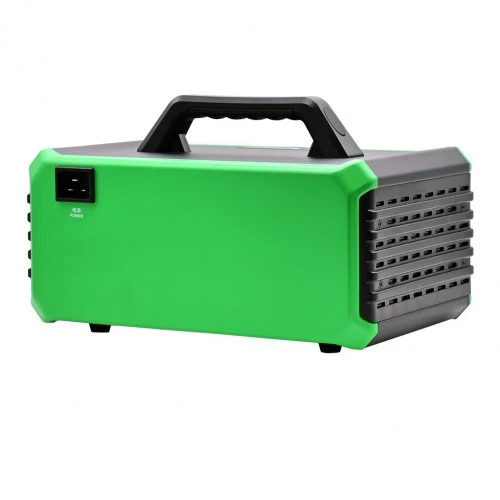

Digital Power Supply ELA320 EV
The ELA320 is an intelligent, digital power supply designed for the maintenance of vehicles with high-voltage batteries. It is suitable for servicing and testing high and low voltage electrical components including electric air conditioning compressors, DC/DC modules, PCT heaters, electronic fans and power steering pumps.
Features:
- ELA320 is an intelligent digital voltage supply unit for HV vehicle maintenance.
- It can be used for maintenance testing of high and low voltage electrical components such as:
- Electric air conditioning compressor
- DC/DC module
- PCT heater
- Electronic fan
- Power steering pump
High-voltage and low-voltage circuits
The high and low voltage circuits are separately fused and can be operated separately. Circuits can be managed, maintained and monitored separately.
Independent protection mechanism
For the input circuit, the high voltage output circuit and the low voltage output circuit. The system detects faults such as undervoltage, overvoltage, overcurrent, short circuit and initiates the appropriate protective measures. In addition, an audible alarm is triggered in the event of a fault.
Wireless control of synchronised operation
Wireless control of synchronised operation via Bluetooth with the X-431 EURO TAB III. When the unit is connected, the current power supply mode, high/low voltage output conditions, setting parameters and other data are synchronised in real time.

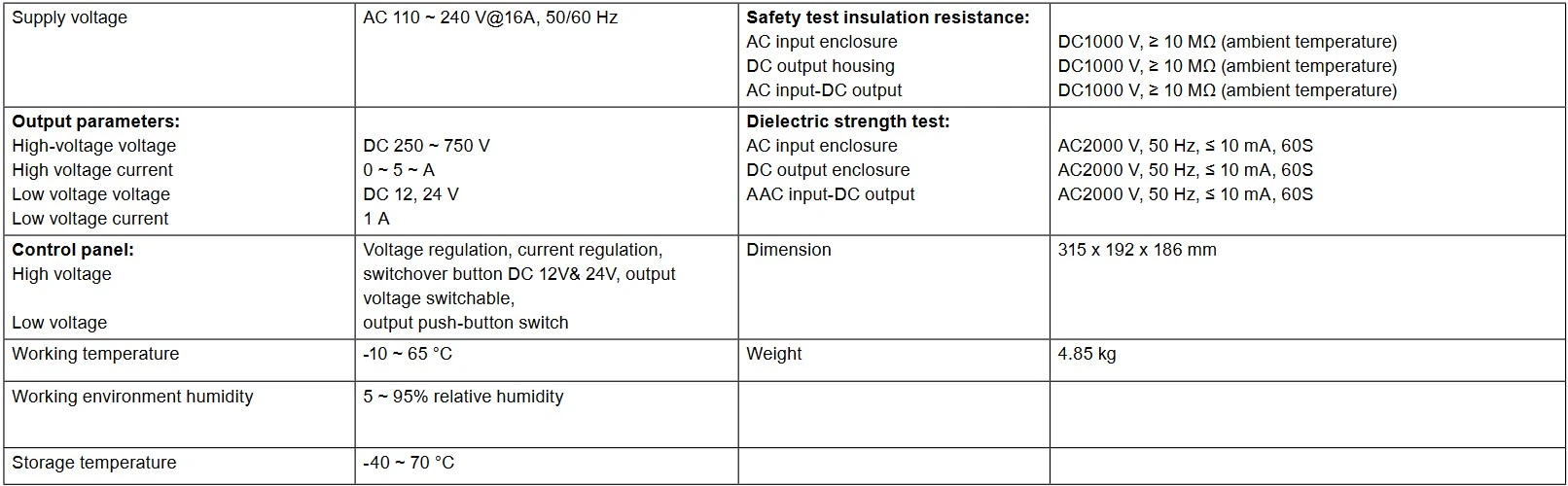

Technical Profile
Precision
Output Voltage
Output Current
Display
8 Segment LED Display
Communication
Bluetooth (BLE 4.2)
