SDT205S | AUTOOL | Smoke Detector Machine For EVAP System

SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
SDT205S | AUTOOL | Smoke Detector Machine For EVAP System
  • AUTOOL SDT205S Smoke Detector Machine is an automotive smoke leak detector with dual test modes, air mode, and smoke mode.
  • Meanwhile, the visual flow meter can effectively observe and control the flow rate of smoke output, and the visual pressure gauge can accurately determine whether the pipe is leaking or not.



UPS-FEDEX-EXPRESS DELIVERY

trust-pilot-reviews

Precio:
313.22€
  • : En stock
  • Marca: Autool
  • Model: SDT205S

Smoke Detector Machine SDT205S

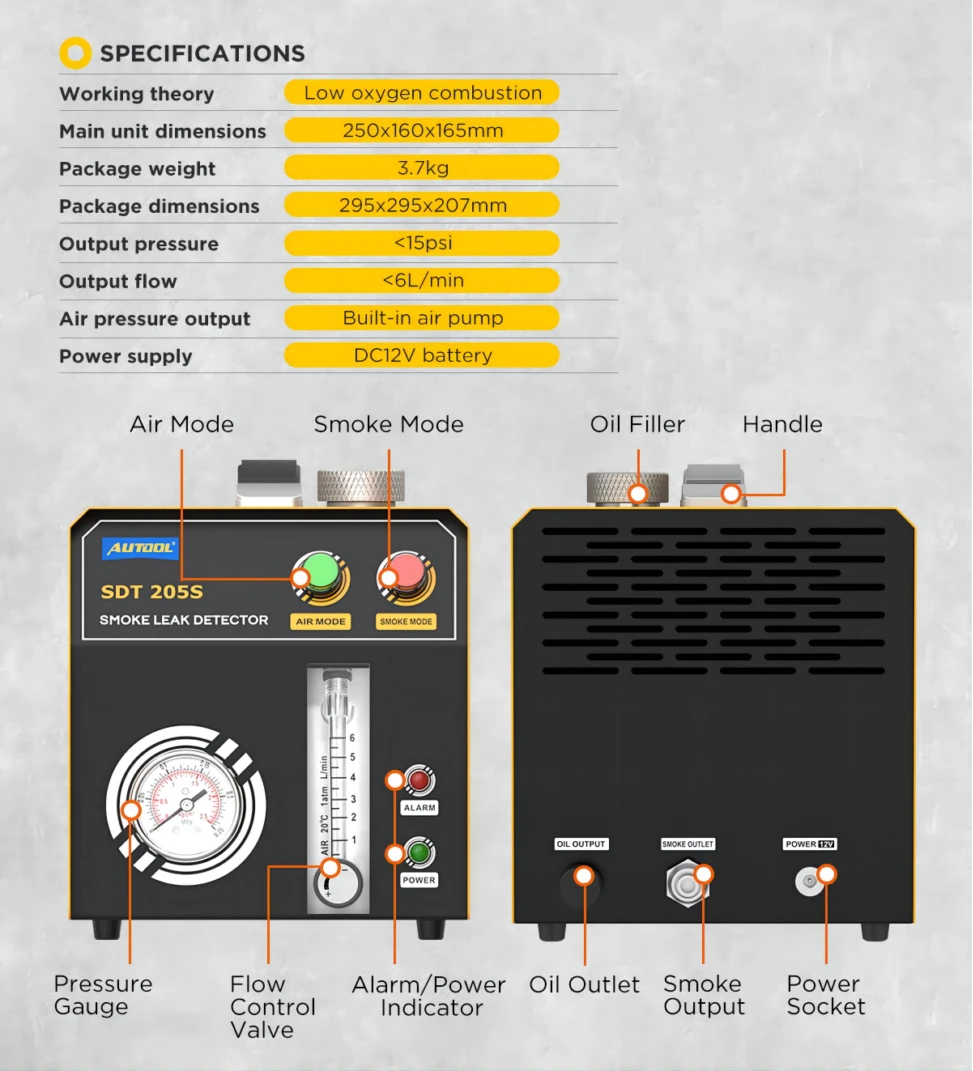

Features

  • Fast smoke output: smoke output within ten seconds, greatly improving your efficiency in the test.
  • Air Mode & Smoke Mode: Built-in air pump and smoke generator, so it does not rely on an additional air machine, perfect for Mobile Automotive Repair! The smoke can be produced within 10 seconds, dramatically reducing diagnostic time. Smoke output value: 6L/min.
  • Compact and Portable Design: Most smoke leak detectors on the market are too large to be easily transported and stored, Autool has designed this smoke leak detector to be small, lightweight, and portable. With a hook and loop design, a cone adapter, and an airbag adapter to fit most air inlets, this is an indispensable tool.
  • Built-in Air Pump: Customers do not need to purchase additional air pumps, we use high-quality materials, after many tests, please rest assured to use. You can save more time and money
  • External Pressure Gauge: You can observe the barometer to more accurately determine whether the car pipeline is leaking. If the barometer index keeps increasing, there is no problem with your car’s pipeline. If the barometer index keeps decreasing, your car’s pipeline leaks need to be repaired, and there is a barometer test. Leakage is faster and more accurate
  • External Flow Meter: You can easily control the air pressure because the air pressure of each pipe in the car is different. If the air pressure is too high, the pipe will be damaged, and if the air pressure is too low, the leak will not be detected. Therefore, the flow meter is very important to protect your detection system more effectively. Make testing safer
  • Overheat and anti-freeze protection: The Autool SDT205S Smoke Detector Machine is equipped with the latest intelligent protection devices. When the temperature exceeds 75℃ the protection device will only activate and shut down the power supply to protect the operator and the equipment. Not only is it protected against high temperatures, but it is also suitable for low-temperature operation.
  • Wide Range of Applications: The AUTOOL SDT205S Smoke Leak Detector is suitable for detecting leaks in automobiles, motorcycles, snowmobiles, ATVs, ATVs, light trucks, and speed boats, suitable for all models(only for 12v DC).
  • 3-Year Warranty: For damage caused by non-human factors, we promise to reissue parts free of charge within 3 years.





Tips

  • When you use this AUTOOL SDT 205S Car Smoke Leak Detector for the first time, fill it with 20ml oil. Please be careful NOT to beyond this range.
  • The testing liquid: both liquid paraffin and baby oil are OK.
  • Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
  • Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
  • During the process of leak detection, please keep away from smoke-sensitive parts.
  • Do not run the detector for over 8 minutes continuously. It needs interval rest.
  • The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.
  • The round part of this detector has temperature, please be careful to avoid burns.

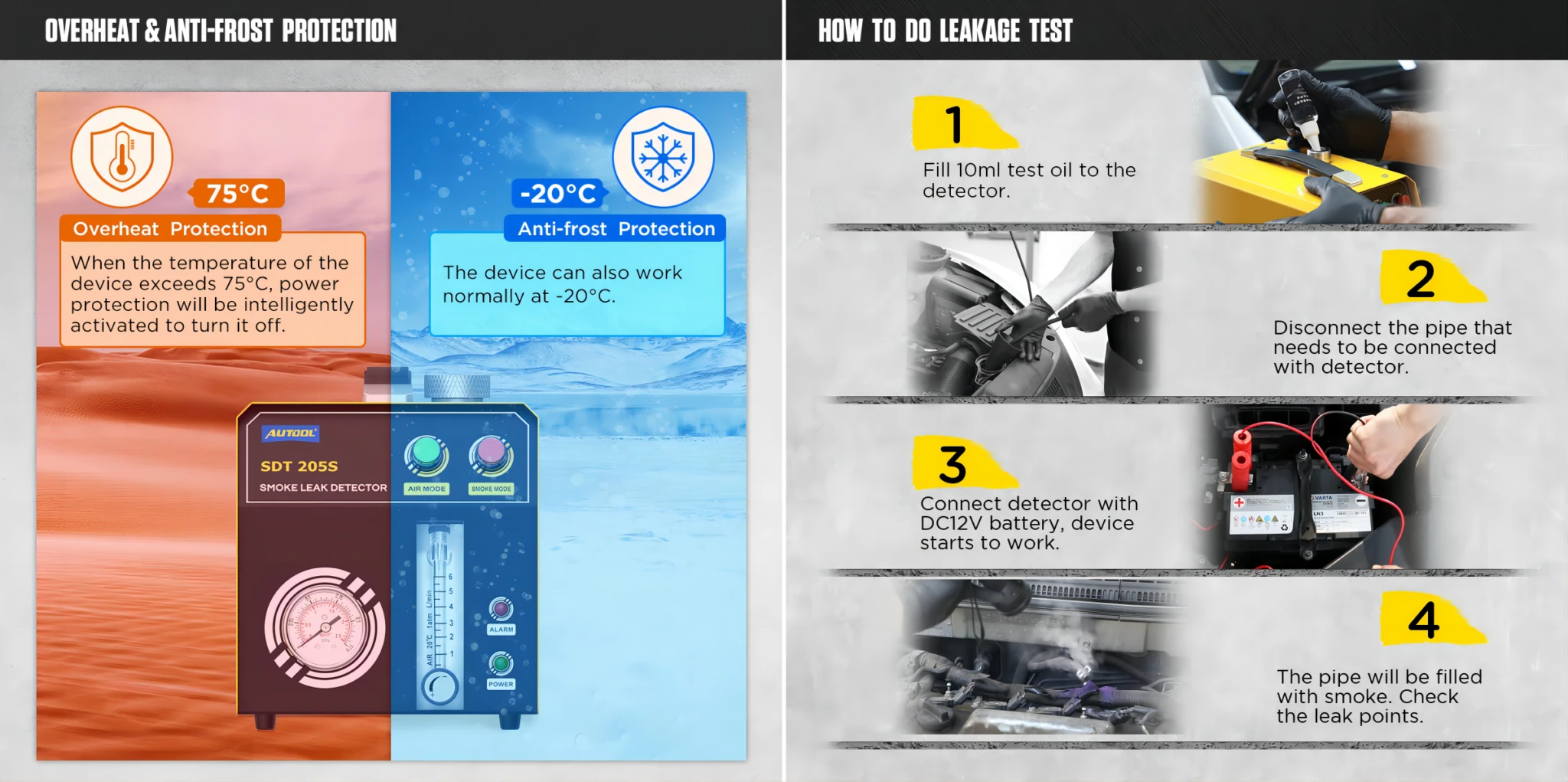

How To Use

  • Step 1: Fill 20ml baby oil into the detector for the first time. Open the engine cover, and hang the detector in the cover.
  • Step 2: Disconnect the pipe that needs to be connected to the detector.
  • Step 3: Connect the detector with the DC12V battery, turn on the power switch, and the detector starts to work.
  • Step 4: In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.

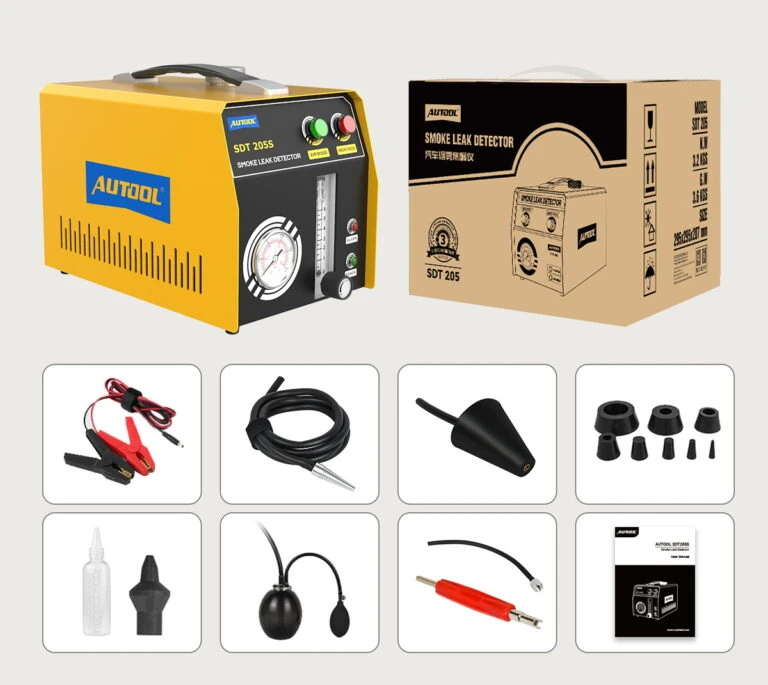

  • 1 x Smoke generator Autool SDT 205S
  • 1 x hook
  • 1 x rubber connection adapters
  • 1 x hard Rubber Connection Adapters (with stock specs)
  • 1 x soft Rubber Connection Adapters (with stock specs)
  • 1 x standard taper adapter
  • 1 x universal Inflatable Seal Pump
  • 1 x power cords
  • 1 x special valve key
  • 1 x test Oil Filling Bottle
  • 1 x special EVAP system adapter
  • 1 x smoke Hose
  • 1 x user manual
