TRUCK EXPLORER DOBERMAN | BALTICDIAG EDITION

Support and updates for 12 + 1 months are included.
Warranty for hardware 12 + 1 months.
Truck Explorer V7 new version
BALTICDIAG EDITION: best price guarantee, direct support, best upgrade options, extended warranty and software license

Precio:

4,900.00€

: En stock
Marca: AutoVEI
Model: D2151K0005

Cantidad

Descripción

TRUCK EXPLORER DOBERMAN

Truck Explorer DoberMAN - is a kit of VEI device, DC2U tool, and adapters with special functions for MAN trucks. EDC7C32, EDC17CV42, FFR, PTM memory read/write. Key programming to FFR and PTM. Pairing EDC7-FFR, EDC7-PTM, MS6-FFR. Diagnostics. 700 tokens included for ECU parameters modification.

EBS - Wabco EBS3/EBS4 Read/Write Flash MPC5554 + EEprom, Knorr-Bremse EBS5 Read/Write Flash MPC562 + EEprom
MAN KEYS - Key programming for MAN trucks FFR or PTM over OBD or DC2. Paring by OBD: EDC7U32+FFR, EDC7U32+PTM, MS6.x+FFR. Paring by DC2 with cable: EDC7U32+FFR, EDC7U32+PTM
MAN FFR - Read & Write FLASH & EEPROM (C167 and ST10Fxx microprocessors) of drive control module FFR (MAN). Operations available over OBD, Direct connection or BSL with DC2U and DC2-FFR cable
MAN PTM - MAN PTM - Flash & EEPROM Read / Write by OBD, DC2 and JTAG
MD1 - MD1CE100 and MD1CE101 Read/Write in DC mode
MAN EDC7 - Flash R/W in OBD and DC mode; Flash/EEPROM R/W by DC in GPT mode; AutoChecksum. Recover in BDM mode.
MAN EDC17 - MAN EDC17CV42 - Flash/EEPROM R/W by DC2 GPT. Checksum
DC2 - Operations by Direct Connection 2 tool (DC2, DC2M, DC2U).

Update/support subscription for 12 + 1 months is included.

Warranty for hardware is 12 + 1 months.

Availability to run operations for tokens: Operations and prices
Included tokens: 700

License EBS

License EBS Read/Write Flash/EEPROM;

Supported ECU:

Wabco EBS3/EBS4/EBS4+ (Mercedes) MPC5554 - JTAG, DC, OBD;
Knorr-Bremse EBS5 (Mercedes) MPC562 - BDM/DC/OBD;
Knorr-Bremse EBS5 (MAN) MPC562 - BDM;
Wabco EBS3 (Kamaz) MPC5566 - JTAG;

Cables for DC2U:

DC2U-EBS34-MB-Wabco cable
DC2U-EBS5-MB-Knorr cable
DC2U-EBS5-MAN-Knorr cable
DC2U-EBS3-KAMAZ cable

License MAN KEYS

License MAN Keys - allows to add new keys to the MAN truck via OBD or directly on the bench with DirectConnect2U tool.

Key programming for MAN truck without MASTER KEY on FFR or PTM.
All operations are done offline, only connection to the truck is required.

It is possible to make new key while connected to the unit via:

OBD (FFR/PTM is mounted inside the truck);
Direct connection with DirectConnect 2U tool

Operations:

Add key
Erase all and Add new key

IMMO pairing:

EDC7C32+FFR (OBD or DC mode)
EDC7C32+PTM (OBD and DC mode)
MS6.x+FFR (OBD mode)

License MAN FFR

License FFR is for Read & Write FLASH & EEPROMs (C167 and ST10Fxx microprocessors) of drive control modules FFR (MAN truck).

License update from 2023-02-01 in software v7.1

Operations available:

OBD mode
DC mode
BSL mode

License MAN PTM

License PTM for Read/Write Flash/Flash of MAN PTM.

License is updated from 2023-01-27 in software v7.1

Read/write:

MPC Microprocessor Controller MPC5554 (SPC6670) (Flash)
External flash M29W160EB (Flash)

Operation modes:

OBD
DC
JTAG

In DC mode: No need to disassemble ECU.

Cable needed:
- DC2-PTM cable or DC2-EDC7+PTM+FFR cable

In JTAG mode: Need to disassemble ECU.

Need for additional cables:

- DC2U-ISP-JTAG+BDM dongle

- DC2U-JTAG8 open flex cable

License MAN MD1

License MD1 for Read/Write Flash/Eeprom of MD1CE100 and MD1CE101.

MAN MD1CE100 Read/Write in DC mode
IVECO MD1CE100 Read/Write in DC mode
KAMAZ MD1CE100 Read/Write in DC mode

IVECO MD1CE101 Read/Write in DC mode

License is available from 2023-02-01 and software v7.1

License pack MAN EDC7

License pack MAN EDC7 for EDC7C32:

License MAN EDC7 OBD - Flash R/W by OBD; Auto Checksum (no EEPROM)
License MAN EDC7 GPT - Bootloader/Flash/EEPROM R/W in GPT mode; Flash R/W in DC mode. AutoChecksum.
License EDC7 BDM - Bootloader/Flash/EEPROM R/W in BDM mode.

License pack MAN EDC17

MAN EDC17CV42:

GPT mode:
- Flash and EEPROM Read/Write. Checksum

BSL mode:
- Flash Write
- EEPROM Read/Write

License DC2

Additional license for VEI device to perform operations by Direct Connection 2 tool (DC2, DC2M, DC2U).

Update/support subscription.

Update/support subscription for 12 months is included in a kit.

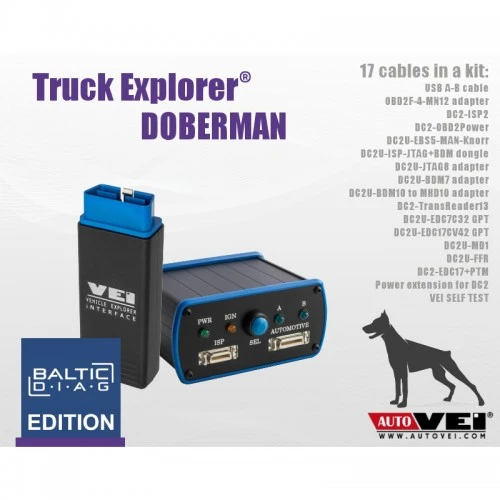

VEI V7 WiFi main tool
USB A-B cable
OBD2F-4-MN12 adapter
DirectConnect 2U tool
DC2-ISP2 cable
DC2-OBD2Power cable
DC2U-EBS5-MAN-Knorr cable New!
DC2U-ISP-JTAG+BDM dongle
DC2U-JTAG8 open flex (for dongle)
DC2U-BDM7 open flex cable (for dongle)
DC2U-BDM10 to MHD10 cable (for dongle)
DC2-TransReader13
DC2U-EDC7C32 GPT cable 2m
DC2U-EDC17CV42 GPT cable 2m for MAN
DC2U-MD1CE100 cable New!
DC2-FFR cable
DC2U-EDC17+PTM cable New!
Power cable extension 3m for DC2
VEI Self Test cable

Support and updates for 12 + 1 months are included.

Warranty for hardware 12 + 1 months.

CARACTERISTICAS

License EBS

License EBS Read/Write Flash/EEPROM;

Supported ECU:

Wabco EBS3/EBS4/EBS4+ (Mercedes) MPC5554 - JTAG, DC, OBD;
Knorr-Bremse EBS5 (Mercedes) MPC562 - BDM/DC/OBD;
Knorr-Bremse EBS5 (MAN) MPC562 - BDM;
Wabco EBS3 (Kamaz) MPC5566 - JTAG;

Cables for DC2U:

DC2U-EBS34-MB-Wabco cable
DC2U-EBS5-MB-Knorr cable
DC2U-EBS5-MAN-Knorr cable
DC2U-EBS3-KAMAZ cable

License MAN KEYS

OBD (FFR/PTM is mounted inside the truck);
Direct connection with DirectConnect 2U tool

Operations:

Add key
Erase all and Add new key

IMMO pairing:

EDC7C32+FFR (OBD or DC mode)
EDC7C32+PTM (OBD and DC mode)
MS6.x+FFR (OBD mode)

License MAN FFR

OBD mode
DC mode
BSL mode

License MAN PTM

License PTM for Read/Write Flash/Flash of MAN PTM.

License is updated from 2023-01-27 in software v7.1

Read/write:

MPC Microprocessor Controller MPC5554 (SPC6670) (Flash)
External flash M29W160EB (Flash)

Operation modes:

OBD
DC
JTAG

In DC mode: No need to disassemble ECU.

Cable needed:
- DC2-PTM cable or DC2-EDC7+PTM+FFR cable

In JTAG mode: Need to disassemble ECU.

Need for additional cables:

- DC2U-ISP-JTAG+BDM dongle

- DC2U-JTAG8 open flex cable

License MAN MD1

License pack MAN EDC7

License pack MAN EDC17

MAN EDC17CV42:

GPT mode:
- Flash and EEPROM Read/Write. Checksum

BSL mode:
- Flash Write
- EEPROM Read/Write

License DC2

Additional license for VEI device to perform operations by Direct Connection 2 tool (DC2, DC2M, DC2U).

Update/support subscription.

Update/support subscription for 12 months is included in a kit.

EL PAQUETE CONTIENE

VEI V7 WiFi main tool
USB A-B cable
OBD2F-4-MN12 adapter
DirectConnect 2U tool
DC2-ISP2 cable
DC2-OBD2Power cable
DC2U-EBS5-MAN-Knorr cable New!
DC2U-ISP-JTAG+BDM dongle
DC2U-JTAG8 open flex (for dongle)
DC2U-BDM7 open flex cable (for dongle)
DC2U-BDM10 to MHD10 cable (for dongle)
DC2-TransReader13
DC2U-EDC7C32 GPT cable 2m
DC2U-EDC17CV42 GPT cable 2m for MAN
DC2U-MD1CE100 cable New!
DC2-FFR cable
DC2U-EDC17+PTM cable New!
Power cable extension 3m for DC2
VEI Self Test cable

Support and updates for 12 + 1 months are included.

Warranty for hardware 12 + 1 months.
