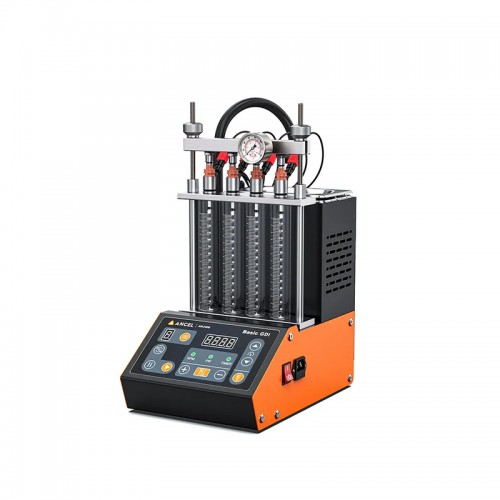

Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine

Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
Fuel Injector Tester and Cleaner ANJ400 GDI | ANCEL | 4-cylinder Ultrasonic Cleaning Machine
  • The ANJ400 GDI Fuel Injector Tester & Cleaner is a professional 4-cylinder auto fuel injector testing cleaning machine.
  • Perfectly suited for removing carbon from gasoline cars and motorcycle fuel systems, testing leaks, cleaning spark plugs, and testing injection of injectors.

UPS-FEDEX-EXPRESS DELIVERY

trust-pilot-reviews

Price:
366.95€
  • : In Stock! Estimated Delivery Time: 2-4 Days
  • Brand: ANCEL
  • Model: ANJ400 GDI



ANCEL ANJ400 GDI



The ANJ400 GDI Fuel Injector Tester & Cleaner is a professional 4-cylinder auto fuel injector testing cleaning machine. It is equipped with a pressure gauge which can make the test more precise and easier. Perfectly suited for removing carbon from gasoline cars and motorcycle fuel systems, testing leaks, cleaning spark plugs, and testing injection of injectors.





MAIN FUNCTIONS:



1. Ultrasonic Cleaning

Ultrasonic cleaning uses the penetrating and cavitation shock waves generated when ultrasonic waves propagate in the medium, and powerfully clean objects with complex shapes, cavities and pores to completely remove stubborn carbon deposits on the fuel injector.



2. Fuel Injector Cleaning & Tester

This function is to detect the atomization, dripping, blockage, and fuel injection angle status of the fuel injectors and the size and balance of the fuel injection of each fuel injector at different speeds.

  • Ultrasonic Cleaning: To clean injectors to remove the carbon deposition on them completely.
  • Resistance Test: To test the resistance of the fuel injector
  • Leakage Test: To test the sealing and dribbling conditions of injectors under system pressure.
  • On-Vehicle Cleaning: Coming with a variety of disassembly-free cleaning connectors, the device can be used to perform on-vehicle cleaning and maintenance for various vehicle models.
  • Injecting Flow Test: To check the injecting amount of the injector in 15 seconds of constant injection.
  • Uniformity / Sprayability Test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight.
  • Reverse Cleaning





MAIN FEATURES:

  • The special structure design makes the disassembly and assembly of the fuel separator easier and greatly improves work efficiency. With the resistance test of the injectors one by one, get to know the condition of the injectors.
  • The ultrasonic cleaner is integrated into the machine, which makes the operation easier and more efficient.
  • With the dedicated motherboard, it can support the full and long test of low-resistant fuel injectors such as 1 ohm. The unique fuel circuit depressurization technology can make the machine automatically depressurize in the case of a sudden shutdown, avoiding equipment damage or personal injury.
  • The brightness of the screen and backlight and the level of the buzzer can be manually set and saved.
  • The product adopts fuel pressure adjustment and control technology by microcomputer, which can ensure stable fuel pressure and wide adjustable range. It applies to vehicles equipped with a variety of gasoline injection systems. Meanwhile, the automation of injectors’ cleaning and testing processes can be realized.
  • Adoption of microcomputer automatic control and digital display technologies, the cleaning and testing processes can be controlled automatically, and the parameters of the main status can be monitored in real-time.
  • Adopting a humanization design can make the system pressure quickly restored to the default values.





Main Unit Power Supply:AC220V±10% 50Hz/60Hz or AC110V±10% 60Hz
lnput Power:230
Ultrasonic Cleaner Power:100W
Resistance Test Accuracy:0.1Ω
SimuIated RPM Range: 100~9900rpm, Step:10rpm
Time Range: 5~300s, Step:5s
Pulse Width: 0.1~25ms, Step:0.1ms
Fuel Tank Capacity:2000ml
Work Pressure:0-7bar



  • Fuel Injector Tester & Cleaner x 1
  • Adjust Screw x 2
  • Fuel Feed Funnel x 1
  • 14 Injector Flat Plate x 4
  • Underlay of Injector x 4
  • Power Line x 1
  • Special Line x 4
  • Top Feed Injector Rail x 1
  • Sealed Ring of Connectors (7.52*3.53) x 10
  • R1/4 Blank Plug x 3
  • European Standard Connectors 13.6 x 4
  • Standard connectors 10.6 x 4
  • Injector Connector Φ12.5 (GDI Conector) x 4
  • Injector Connector Φ9.8 (GDI Conector) x 4
  • Injector Connector ΦM18 (GDI Conector) x 4
  • Pluse Line of Injector x 1
  • Support Frame of Injectors x 1
  • Fuel Pipe x 1
