Key Tool Plus Pad | Xhorse | Professional Locksmith Tool

1. Powerful functions:

• Supports DOIP
• Supports CAN-FD
• Supports CAN and K protocol switch pins
• Supports Chip pin detection
• Supports Toyota smart key programming without a simulator
• Supports Long-distance IMMO collection

2. Built in Components

• OBD matrix switch
• Radio frequency simulator
• Smart key simulator
• integrated key identification coil
• BENZ infrared reading head

3. All in one automotive solution

4. IMMO programming for Benz, BMW, Audi, VW and common car brands - Toyota, Honda, Mazda, Ford, etc.

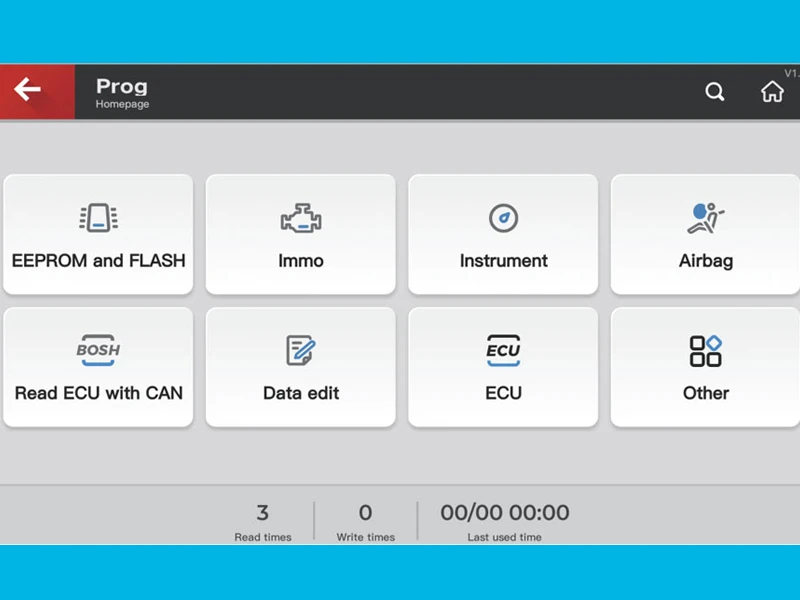

The KEY TOOL PLUS supports over 20,000 car models worldwide. We can select the car brands and car models on the IMMO programming interface. On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.

5. VVDI Key Tool Plus Incorporates Programming Functions:

• Supports EEPROM reading and writing: supports reading & writing of most types of transponders in the market.
• Supports BMW IMMO module programming, covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
• Supports Land Rover RFA module reading and IMMO programming.
• Supports Porsche BCM programming.
• Supports read ECU with CAN on AUDI, BMW, and VOLKSWAGEN.
• Supports instrument programming on HONDA, KIA, and HYUNDAI.

(Note: To complete certain functions, users need to connect the KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface. This function is only effective on the advanced edition).

6. IMMO DATA TOOL (FILE MAKE KEY) Function Improved

Key programming and certain settings can't be finished via OBD port on some car models due to their immobilizer protection system. Through a professional programming method - FILE MAKE KEY, the problem can be easily solved.

[ File make key: to generate a car key via a data file. Users need to use the specific device to read the IMMO data, and generate a boot transponder to directly start the car, no need to match the original car. (Users may need to rewrite the data to the IMMO box when doing the programming process on some car models.) ]

The KEY TOOL PLUS supports the File Make Key function for common car models and motorcycles. We can easily find the car models we need by brand area, brand name, and A-Z word search.

7. Control Xhorse Key Cutting Machine

VVDI Key Tool Plus Processor:

• 4xCortex-A53 up to 2.3Ghz
• 4xCortex-A53 up to 1.8Ghz
• Memory 4G+ Storage 128G
• Resolution of up to FHD+ (2,400*1,080)

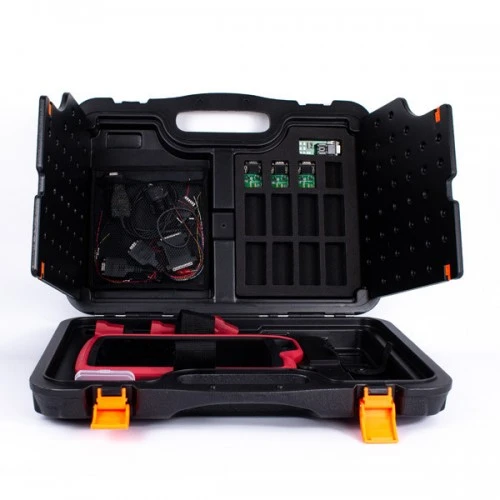

Description

Quantity

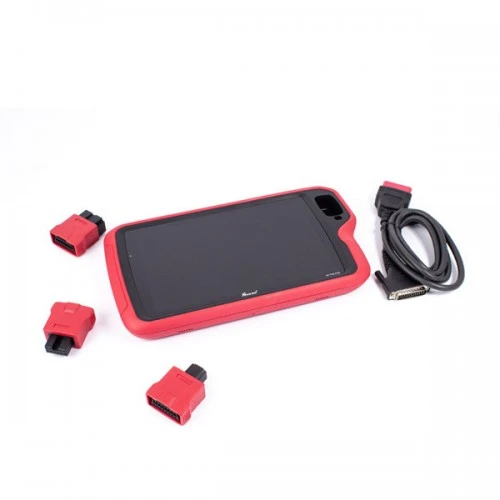

Key Tool Plus Tablet

1

Device instruction

1

Fast Charging Plug

1

USB Charging Cable

1

OBD Cable

1

OBD Connector

1

OBD Connector

1

OBD Connector

1

Remote Programming Cable

1

Infrared Adapter for Benz

1

Adapter 1 for Benz NEC chip

1

Adapter 2 for Benz NEC chip

1

Adapter 3 for Benz NEC chip

1

Transponder storage box

1

Cable fro reading ad writing Motorola 9S12 series chip

1

Cable for reading and writing MCU chip

1

EEPROM reading & writing adapter

1
